Jekit Black Brake Caliper 355x32mm Hole Rotor 6 Pots Brake System
| Brand | Jekit |
| Model | 6 Pots Brake Kit |
| Weight (no pads) - Kg | 7.8KG/pair |
| Number of pistons | Big 6 pistons |
| Suitable for wheels | suitable for 18 inches or more |
| Adaptation brake disc | 18 Inch 355*32mm 19 Inch 362*32mm |
| Description | Processed according to customer needs |
Product Description:
One set complete set brake kit including these parts
1 pair brake calipers
1 pair brake discs
1 pair brake disc bell
1 pair bracket
1 pair brake hose
1 set brake pads
Applications:
- Performance Road Front.
- Factory Big Brake Kits.
Features:
- Radial Mount, 152mm centres.
- Suits Ø362 x 32mm thick discs.
- Cast two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Steel wear plates.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP7040-2S0 / - LHT = CP7040-3S0.
- RHL = CP7040-4S0 / - LHL = CP7040-5S0.
Brake caliper size
| CALIPER TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø27.0 x 2 / - Ø31.8 x 2 / - Ø38.1 x 2 |
| Piston Area - cm³ | 50.1 |
| Disc Diameter - mm | Ø362.0 |
| Disc Thickness - mm | 32.0 |
| Weight (no pads) - Kg | 3.7 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 152.0 |
| Mounting Offset - mm | 53.2 |
| Mounting Hole Ø - mm | 12.1 |
| ‘PL’ Dimension - mm | 68.8 |
| Bleed Screw Tightening Torque | 17Nm |
| CALIPER SPARES | |
| Pistons | - Ø27.0 = CP7040-118
- Ø31.8 = CP6609-106
- Ø38.1 = CP6200-104 |
| Seal Repair Kit | CP4525-CEJ |
| Pad Retainer Type / Part No | Pin / CP6600.-109 x 2 |
| Wear Plates | CP7040-110 x 4 |
| Bleed Screw | CP3880.1 |
| Anti-Rattle Clip | CP7040-115 |
Brake pad size
| Pad Thickness - mm (") | 16.75 (0.66) |
| Pad Depth - mm (") | 54.0 (2.12) |
| Pad Area - cm² (in²) | 68.35 (10.59) |
| Friction Materials Available | APF404 / APF405 / DS2500 / DS25HP / DS3000 |
| Fits Brake Caliper Family | CP7040 |
Brake hose type
Concave mouth
Convex mouth
We can sell these caliper/pad/disc/center bell/bracket/brake hose seprately.
If you only need caliper. Please tell me caliper number
If you only need disc. Please tell me disc diameter and thickness
If you only need brake pad,Please tell pad number
If only need center bell, Please offer disc data(PCD/Locating Ring/Step/Depth/Holes Diameter)
If only need bracket, Please offer caliper measurement and disc diameter thickness
If you only need brake hose, Please offer car type/year
Generally we need car vin code to check if we have the car data. If no car data, If you can measure car data for us,
We can make custom kit for you
We also need to know your wheel rim size before give you suggestion. You can see rim wheel size on wheel tire
Company information:
Guangzhou Yuanxing Industrial Co., Ltd is China's leading professional brake product supplier, located in the beautiful Yangcheng-Guangzhou. Since its inception in 2003, the company has only focused on the production of automotive modified brake kits and brake system components. The products include brake discs, calipers, brake pads, brake steel hoses and so on. We have our own professional R&D team and perfect production equipment. From the tiny screw fittings to the manufacture of the caliper body, we have a complete production line for high-volume product manufacturing. We have a group of high-precision CNC machine tools imported from Japan, and employ the machine tool master with more than ten years of operation experience to carry out the most critical operation procedures. Thanks to the focus on product quality, our products enjoy a good reputation both in domestic and international markets. Our products are exported to the United States, Australia, the Middle East and Southeast Asia and other countries and regions. The professional R&D team is the guarantee that the factory can carry out the customization of large-volume products. The standard production line operation and strict quality inspection procedures are the prerequisites for our products to have a good reputation. Our products include the models of our own brands and are customized according to the requirements of our customers to meet the high standards and high requirements of our customers. We also have a complete logistics and transportation chain, including sea, land and air amphibious transportation, so that customers can choose the most convenient and most suitable transportation channel.
|
|

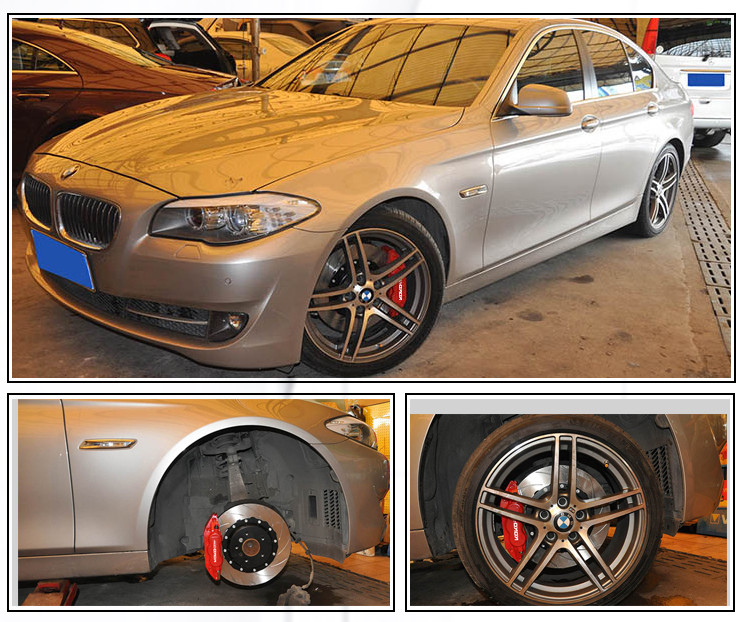

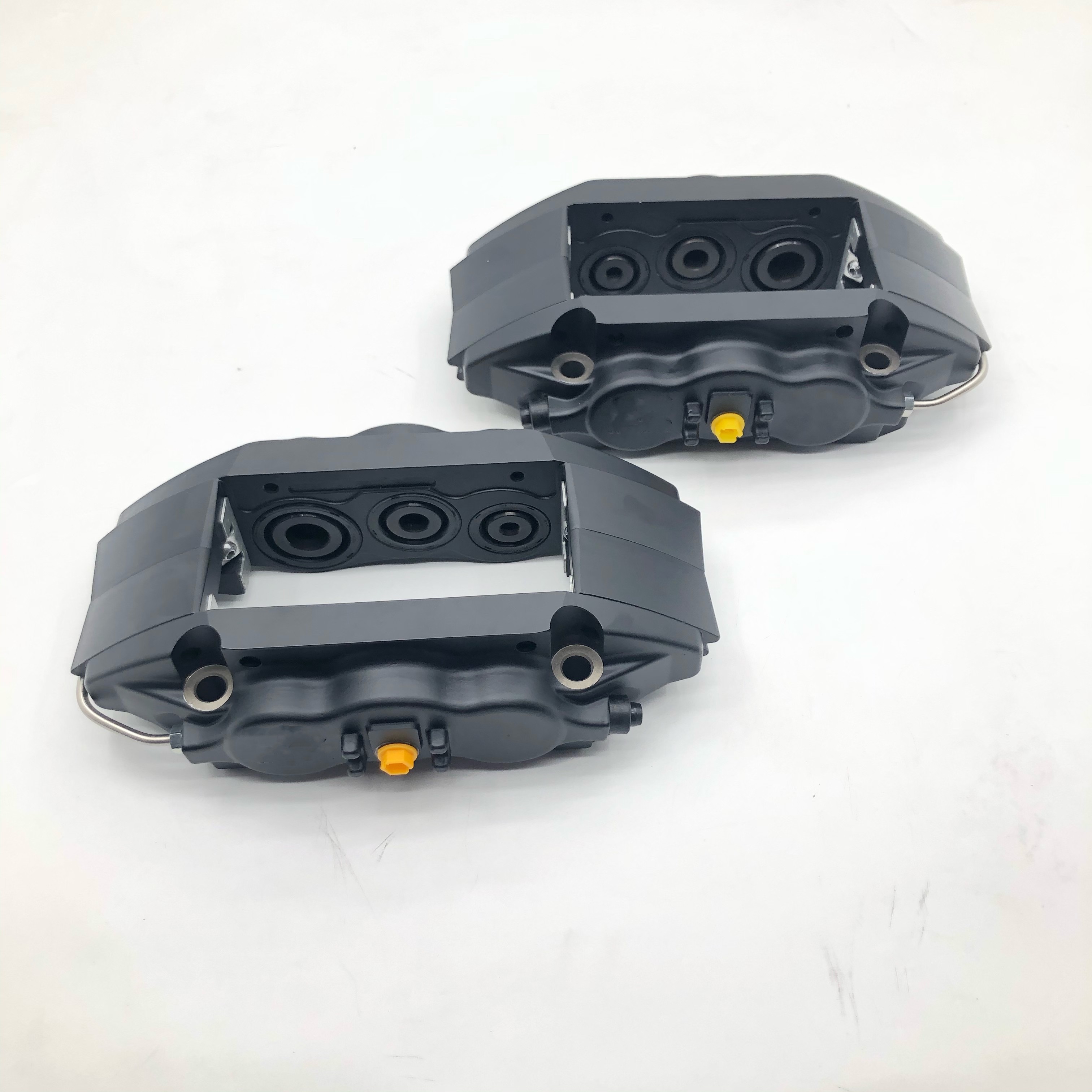

Jekit Black Brake Caliper 355x32mm Hole Rotor 6 Pots Brake System Images
|
